Custom Arches

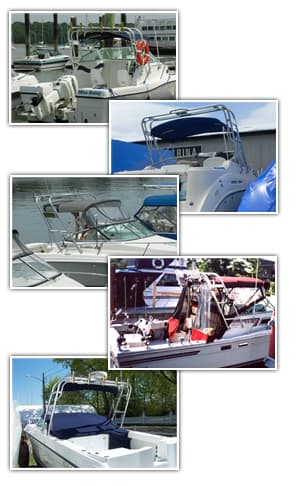

Custom Fishing Arch - $1599

An arch in elemental form, two continuous one-piece loops of schedule 40 marine grade aluminum pipe nearly 2 inches in diameter form the foundation of this Atlantic Towers Structure. Reinforced with a truss/handrail (approx. 1 1/4” o.d.) and combined with our exclusive ATL4 & ATL 5 Mounting Plate Extrusions, (click here to learn more about ATL 4 & 5 extrusions) The Custom Fishing Arch can be shaped and configured to complement the lines of any Walk Around Fishing Boat or Trailerable Express Cruiser (to about 26’x8’6"). Plus it’s strong enough to handle a full range of gear. Dress this Atlantic Custom Fishing Arch with a full complement of antennas, radar, outriggers and rod holders. It can even handle a tow fitting for watersports.

All Atlantic Towers Custom Fishing Arches include at no additional charge;

• 4 Gold or Clear finished Tapered Rod holders with welded butt pin and liner

• Full size center Radar Plate, with trim panel under* concealing mounting bolts and wiring.

• Additional mounts for up to six additional antennas or equipment all with self-trimming covers*

• Mounts for flood lights facing aft

• Bright Dip Clear anodized salt resistant finish

click here for detailed info on self trimming mounts.

Custom built for most boats to 8’6” beam. Each Custom Fishing Arch is unique to the specific Make and Model boat for which it is designed using our proprietary data base of specifications for over 1000 power boat models. The angle, taper, side spacers and beam dimensions are all customized for individual boat models and owner preference. The Custom Fishing Arch is typically designed to mount to the side of the cabin with back-up plates on express style and walk-around boats. It will fit over and around your existing canvas top without interference. (click for additional mounting information)

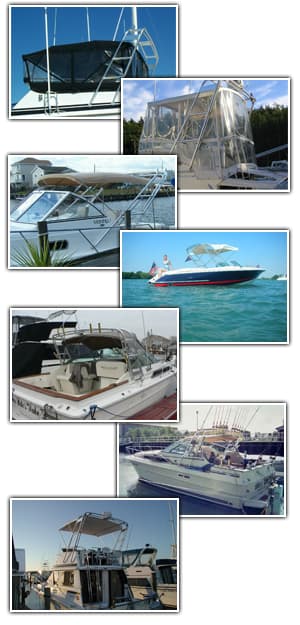

Custom Radar Arch - $1899

The Custom Radar Arch is a fully trussed structure. Unlike the Fishing Arch, the Custom Radar Arch has a crowned or curved top section and gusseted corners, Custom built for boats up to approximately 65’. Atlantic Custom Radar Arches are all made from schedule 40 aluminum pipe measuring nearly 2" in outside diameter. The graceful arc across the top of the arch greatly increases the static weight and dynamic loads the arch can handle. The Custom Radar Arch can handle the largest radar and it can also be fitted with lifting eyes to function as a gin pole, or even converted to a full hardtop. The structure of the arch is hollow so that wiring can be concealed inside.

Every Atlantic Custom Radar Arch includes;

• Full size self-trimming radar plate to conceal mounting bolts and wiring

• Mounts for up to six additional antennas, all self trimming

• Mounts for aft facing DC floodlights included

Custom built for most boats, each Custom Radar Arch is unique to the specific Make and Model boat for which it is designed using our proprietary data base of specifications for over 1000 power boat models. The angle, taper, side spacers and beam dimensions are all customized for individual boat models and owner preference. The Custom Radar Arch is typically designed to mount to the side of the Flybridge or the windshield trail with back-up plates on express style and larger walk-around boats. Flexible mounting system also permits "flat" mounting to the gunnel or cabin top. It can be designed to fit over and around your existing canvas top without interference.

Custom Deluxe Arch - $2499

Styled to complement “swoopy” new bowriders, fun decks and express cruisers, the Deluxe Custom Arch can be designed to rake forward or aft, and is available with the full complement of Arch Options.

Custom built for most boats, each Custom Deluxe Arch is unique to the specific Make and Model boat for which it is designed using our proprietary data base of specifications for over 1000 power boat models. Fully radiused from every view, the angle, taper, side spacers and beam dimensions are all customized for individual boat models and owner preference. The Custom Deluxe Arch is typically designed to mount to the side of the cabin with back-up plates on express style boats. It can be designed to fit over and around your existing canvas top without interference.

Custom Arch Options

hinge kit
rod holders
running light

55 watt deck lamp

LED deck lamp

LED deck lamp

Hinge Kit# 2 Allows your Arch to be folded for transport, storage or low clearance. Special side mounts forward, allow installation of Quick Release aircraft style stainless steel pins. These pins may be removed without tools, allowing the arch to fold aft or forward on the hinge assembly. (Note, some means must be provided to support the arch for transport if the boat is trailered or run with the Arch in the down position. (the hinge kit is a difficult retrofit. it should be ordered with Arch) $189.00 ($299 if ordered separately)

Tow Fitting - Mounted on a loop extending aft of the main arch structure, the tow fitting is clear of the radar mounting area, and any rod holders installed across the aft edge of the arch. (MUST be ordered with Arch) $375.00

Weld on Rod Holders – (four included in base price of Fishing Arch) available in a choice of finishes, our rod holders are fully tapered and polished by hand before anodizing in gold or clear (aluminum) salt resistant finish. Welded butt pins provide a smooth exterior and prevent your rods from twisting in the holder. Inside is a vynil liner to protect your rod butts from chafing. Weld on rod holders can be placed anywhere on the arch structure and in almost any position. There is virtually no limit to the number it is possible to install. (MUST be ordered with Arch) $65.00 each Photos…

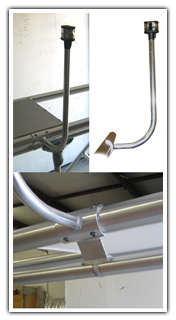

Anchor/Running Light on custom aluminum mast finished to match all Atlantic Towers Custom Arches. A two way masthead light allows this unit to function both as a forward steaming light, or all round white to comply with international rules for vessels to 65’ Available in a variety of heights and offsets to work with closed dome or open array radar antennas. Removable to provide clearance for winter covers or shrink wrapping. $139.00 Photos

55 Watt Deck Lamps Option
55 watt conventional halogen deck flood lamp with replaceable bulb in waterproof housing. Current draw, 4.8 amps each, 9.6 amps a pair at 12 volts. Wire with minimum 14 gauge (always used tinned stranded wire for marine applications). Includes choice of mounting bracket to fit any Atlantic Towers structure.
(Sold in Pairs)
Tower in a Box Arches - Pair MP150 with 464-21 Bracket: $139
Custom Arches - Pair MP150 with 464-20 Bracket: $139

LED deck flood lamp from Lumitec
More light, less current draw than conventional halogen lamps. Current draw less than 1 amp each (less than 2 amps a pair) at 12 volts. Wire with minimum 20 gauge (always used tinned stranded wire for marine applications). Includes Choice of mounting bracket to fit any Atlantic Towers structure.
(Sold Individually)
Tower in a Box Arches - Single MP152 with 464-21 Bracket: $179
Custom Arches - Single MP152 with 64-20 Bracket: $179

See the ACCESSORIES section of our website for a full range of additional bolt-on options.

Shipping

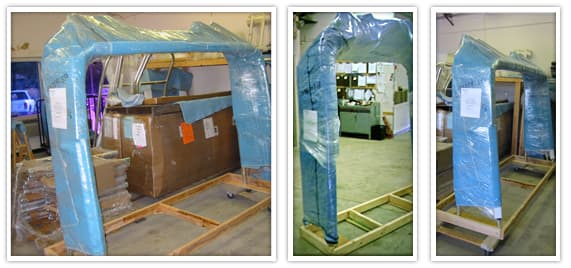

All Atlantic Towers Custom Arches are completely engineered products.  The are ready for installation without any field welding when they leave our plant.  As a result.  They can be packed and shipped anywhere in the world.  Custom Arches are bolted upright to a shipping frame.  Prior to installation the extra material in the legs is trimmed.   The arch is wrapped in multiple layers of quilted shipping pads and plastic.  Rod holders and other equipment receives additional protection from wood strips and corner board.
