T-Top Accessories

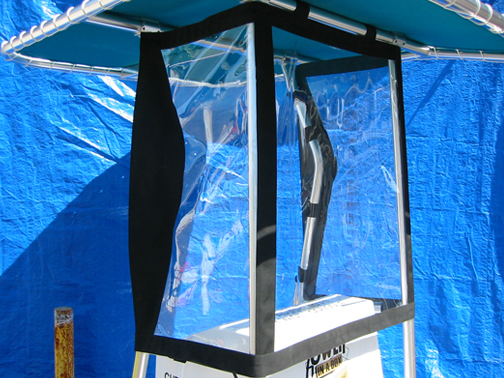

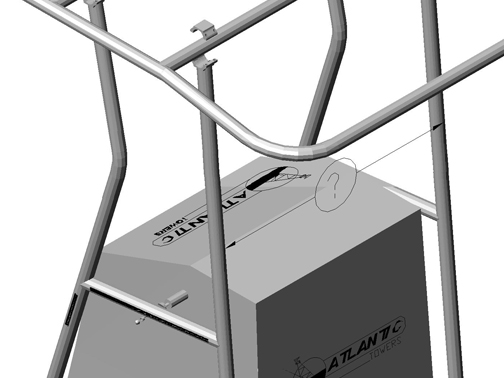

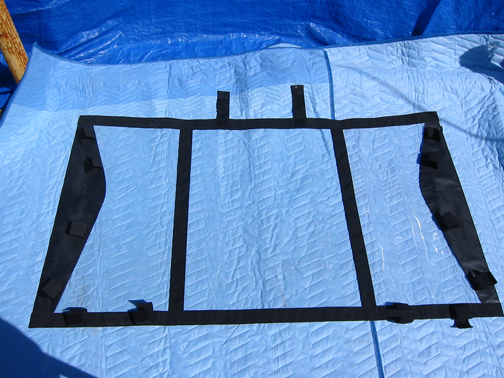

Enclosures and Custom Canvas Work can take a long time to get, and are often expensive. Atlantic Towers thru an arrangement with a manufacturer of OEM canvas products makes it possible to order a “Telephone Booth” style enclosure easily. Just provide the measurement of your forward Trampoline T-top legs as installed on your boat. (see measurement diagram)

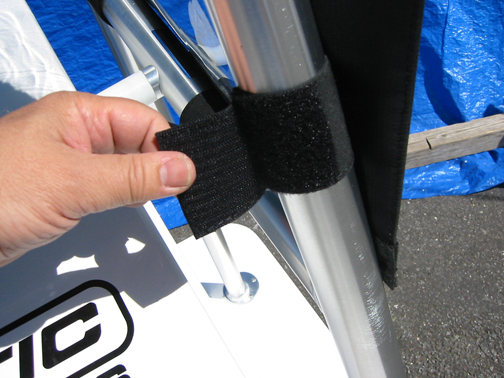

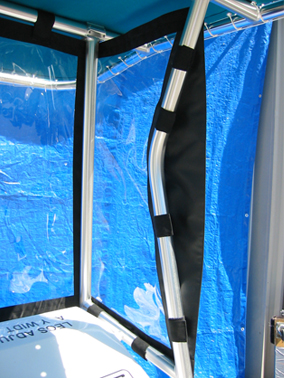

No installation is required, the Trampoline T-top enclosure secures directly to your T-top frame with wide Velcro collars. No drilling or fasteners are required. And your enclosure can easily be installed and removed. When not in use, it can rolled up an stowed.

Available in Black, White, Green and Blue to match your T-top $439 including shipping

Call us to order, allow 2-4 weeks for delivery. Note: Enclosure fits ONLY Atlantic Towers Trampoline and Super Trampoline T-tops with leg style TTS5152 and TTS7172.

55 watt conventional halogen deck flood lamp with replaceable bulb in waterproof housing. Current draw, 4.8 amps each, 9.6 amps a pair at 12 volts. Wire with minimum 14 gauge (always used tinned stranded wire for marine applications). Includes choice of mounting bracket to fit any Atlantic Towers structure.

Sold in Pairs
Tower in a Box Arches - Pair MP150 with 464-21 Bracket: $139
Custom Arches - Pair MP150 with 464-20 Bracket: $139

More light, less current draw than conventional halogen lamps. Current draw less than 1 amp each (less than 2 amps a pair) at 12 volts. Wire with minimum 20 gauge (always used tinned stranded wire for marine applications). Includes Choice of mounting bracket to fit any Atlantic Towers structure.

Sold Individually
Tower in a Box Arches - Single MP152 with 464-21 Bracket: $179
Custom Arches - Single MP152 with 64-20 Bracket: $179

Antenna Bracket Option

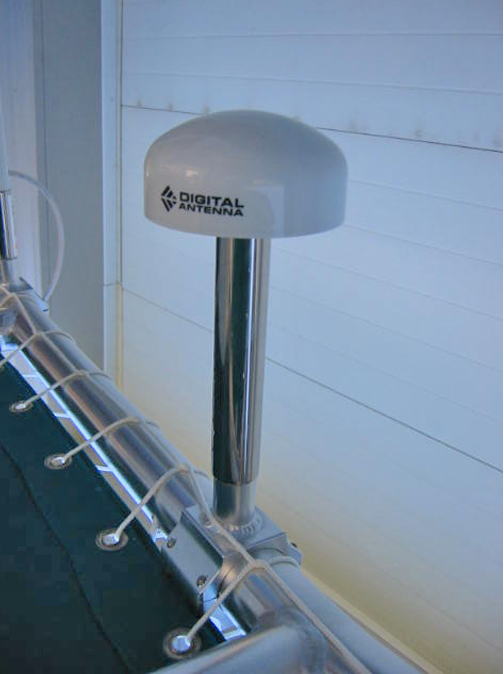

Antenna Bracket threaded 1”-14 for mounting VHF, GPS and other antennas. Clamps to perimeter of “Trampoline” t-top (or any other structure made from 1 1/2” schd 40 pipe measuring 1.90” o.d.) for fast installation. Made be rotated down by loosening 4 allen screws in the clamp. Part # KIT22.1 $89

Flat Plate Mounting Kit

Flat Plate Mounting Kit provides a 3” x 5 1/2” flat surface anywhere on the Trampoline T-top perimeter ring. This may be used to mount antenna brackets, running lights and other gear on the t-top which requires a flat surface. Part # KIT22.2 $89

Adjust-O-Launcher" Rod Holder

The Atlantic Towers unique patented Adjust-O-Launcher Rod Holder allows an additional rod holder to be placed anywhere on your Arch. The Clamp assembly is anodized to the same hardness as your arch, and may be installed and removed without marring the finish of your Arch. You can try as many positions as you wish. Available in Gold to match our optional weld on rod holders, or clear natural aluminum.

To change the position of the rod holder to any one of 12 settings, simply loosen the internal allan screw, set the rod holder to the new position and clamp back onto the Arch

Available Individually for $99 each, or if you order four or more $89 each
Adjust-O-Launcher in Gold, part # AJ305G (includes clamp for 1 1/2” pipe)
Adjust-O-Launcher in Clear, part # AJ305C (includes clamp for 1 1/2” pipe)
Adjust-O-Launcher are also available with clamps in other pipe sizes to fit nearly all Towers, T-tops and Arches.

Pair of Starboard™ Mounting Bars Option

Mounting Bars are machined from “Starboard” a plastic polymer that is strong, but smooth. They slip between the “Trampoline” T-top’s aluminum frame and the fabric “Trampoline”. They are countersunk on top to allow thru bolting to the aluminum frame. The Mounting Bars allow installation of equipment such as radar or antennas by bolting thru top fabric into mounting bars. Also used to support overhead electronics consoles (see package deals below) , if correctly spaced, one pair of bars can perform both functions. It is necessary to drill the “Trampoline” T-top frame for installation.

Electronics Box MP271

Locking water tight Electronics Box with smoked plexiglass door mounts overhead in the Trampoline T-top (KIT# 21 mounting bars required for installation) Choose full size 32” box, or 24” Compact Box.



Dimensions:

Outside: 32" W x 16 1/2" D x 11 1/4" H
Inside: 31 1/2" W x 15 3/4" D x 11" H
Front Panel: 29" W x 8 3/4" H

32” Box including mounting bars and all required installation hardware
$499 our Part # MP271, with KIT#21, and KIT#21.4

Electronics Box MP270

Dimensions:

Outside: 24" W x 14" D x 10" H
Inside: 23 1/4" W x 13" D x 9 3/4" H
Front Panel: 20 1/2" W x 6 1/4" H

24” Box including mounting bars and all required installation hardware $479
our Part # MP270, with KIT#21, and KIT#21.4

Please be aware that as the weight of equipment mounted in the Trampoline T-top increases, it may be necessary to add additional bracing to the T-top. See the list of installation accessories.

Direct Mount T-top Riggers Bases

New Direct Mount T-top Riggers Bases from Tigress. No Welding Required. Clamps Directly to Perimeter Ring of Atlantic Towers Trampoline T-top, only a single 1/4” hole required. These Riggers are adaptable to any Atlantic Towers Trampoline T-top configuration. Spring loaded “T” handle allows easy deployment of riggers from the running to fishing postion. Bases accept 1 1/2” telescoping pole

Pair of Bases for 1 1/2” telescoping poles
Our Part # MP967
$559.00

Easily Deployable Tigress 15’ telescoping poles for above
Pair of 15’ telescoping poles, Black Pole, Gold Fittings
Our Part# MP904
$559.00

Pair of 15’ telescoping poles, Clear Pole, Black Fittings
Our Part# MP905
$559.00

Save $19.00 on complete set. Trampoline T-top Rigger bases with poles $1099.00. Please be aware that as the weight of equipment mounted in the Trampoline T-top increases, it may be necessary to add additional bracing to the T-top. See the list of installation accessories.

Standard Stand Off Kit #13

Additional Pair of Stand Offs for securing Trampoline T-top Legs to Console Kit #13. In some installations, particularly where the stand offs must be mounted on the forward or rear legs instead of the cross bar, in order to achieve maximum stability of the T-top structure it may be necessary to add a second pair of standoffs between the T-top legs and the console. Our Part # Kit 13 $59.00

Xtra Long Stand Off Kit #13.1

Some unusually shaped consoles, consoles that are unusually low, or where the Trampoline T-top legs cannot be positioned close to the console, may require a longer stand off than the 4" one supplied. This extra long stand off provides 8" of length and it may be installed at an angle as in these photos. Our Part # KIT 13.1 $89.00

Diagonal Brace Option

A few center console boats may provide limited areas to install the standard side brace, or if you have mounted a great deal of heavy equipment on your Trampoline T-Top, such as electronics enclosures, radar, etc, you may want the added stability and support of diagonal sway braces. Fully adjustable and may be secured either on top of the console or on it's forward face.

Replacement Fabric Tops

Replacement fabric tops for your Trampoline and Super Trampoline T-Tops in genuine Sunbrella by Glen Raven Mills includes lacing line.
