Atlantic Towers manufactures a wide variety of fittings and specialty hardware that allow Sail Arch owners to design and build a variety of individualized applications. Including Solar Panel array supports. Davit arms, lifting eyes, outboard motor brackets, etc.
|
Atlantic Towers manufactures a wide variety of fittings and specialty hardware that allow Sail Arch owners to design and build a variety of individualized applications. Including Solar Panel array supports. Davit arms, lifting eyes, outboard motor brackets, etc.
|
|

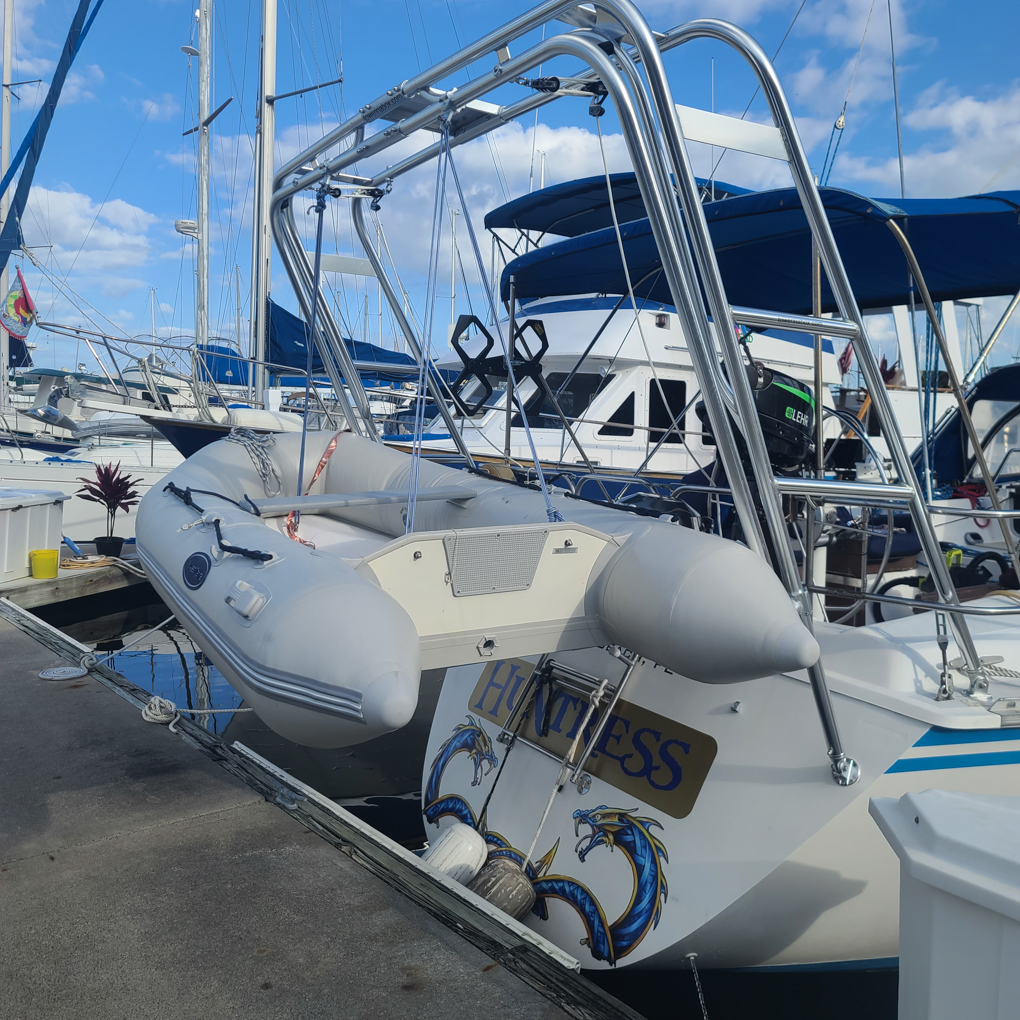

Tender Handler: $1799
A growing number of cruising yachts are using Tower in a Box® stern mounted arches to mount
solar panel arrays and lift their tender. Frequently arches cannot be mounted sufficiently far aft
to provide a straight “pick” when lifting the tender and the tendered needs to dragged up and
over the sugar scoop or extended platform to raise it into a secure position under the arch. The
“Tender Handler” option provides “reach” to lift the tender from the water behind a sugar scoop transom or extended swim platform and then bring it high and close to the yacht under the arch, where it can be secured for navigation. The unique design feature is the articulated pivot at the connection of the “Tender Handler” frame to the arch, eliminating the need for perfect alignment and ensuring smooth operation.
|

|

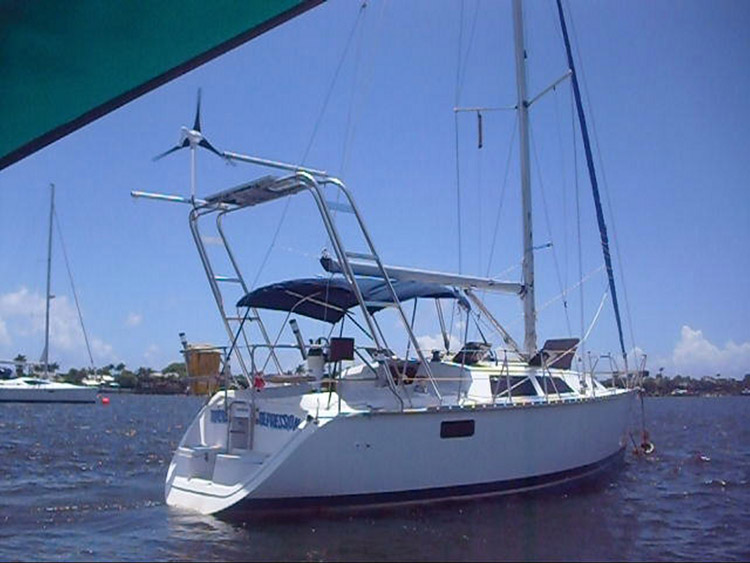

KIT7700 Clamp on Wind Generator Base & Mast $499
Wind Generator Base and Mast can be clamped anywhere on the top of your arch. Comes with a 40' length of 1 1/2" Schd.40 which can be permanently fitted into the receiver with two part epoxy, or made removable with the use of machine screws or quick release pins. The 1.90" outer diameter of the 1 1/2" schd.40 pipe fits many popular wind generators.
|

|

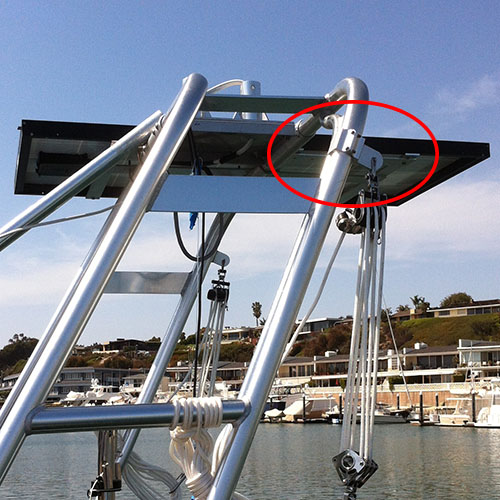

KIT78000 Clamp Assembly/Lifting Eye.
Sold as pairs $199
An extruded anodized aluminum clamp assembly that can be used to secure a lifting tackle to the arch. |
 |

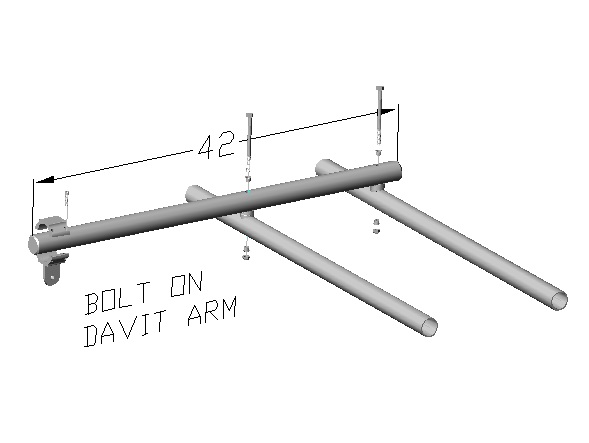

KIT79000 Extension davits. Sold as pairs $599
Can be mounted to top of arch to extend the "pick point" of the lifting eyes up to 24" behind arch. Includes two 42" Schd.80 extensions, end caps, curved washers, clamp assembly lifting eyes, and all hardware needed for installation. Some drilling required. |
| KIT76000 Solar Panel Mounting Kit $319
Allows you to mount solar panels anywhere on your arch. Kit contains (2) 5" lengths of 1" x 2" x 1/8" rectangular aluminum tube, (4) plastic end caps, and all hardware needed for installation. Some Drilling Required |
|
Custom Solar Panel Mounts.
We offer a full line of parts and accessories that can be combined to create your own custom mounting solution. For pricing and more information please call 1-800-831-8889 |
|
AJ30500
Adjust-O-Launcher
Need more rod holders? Individual Adjust-O-Launcher aluminum rod holders can be mounted anywhere on the perimeter of the Sail Arch framework. A unique patented design available exclusively from Atlantic Towers, manufactured from all aluminum in natural aluminum or gold anodized finish Adjust-O-Launchers can be pivoted thru 12 positions for unmatched flexibility. Fits all marine standard 1-1/2” pipe (1.90” o.d.)
AJ30500C Clear Anodizing: $129.00
AJ30500G Gold Anodizing: $159.00 |
|
