Fishing Arch
Adjusts to fit 54" to 72" - $1199 with welded rod holders, $1149 without rod holders
Adjusts to fit 68" to 84" - $1249 with welded rod holders, $1199 without rod holders
Adjusts to fit 80" to 96" - $1299 with welded rod holders, $1249 without rod holders
Proprietary
telescoping design allows adjustment to fit walkaround fisherman and
express cuddy cabins to 26+ and 8’6” beam High Strength
welded frame of schedule 40 marine grade aluminum pipe which measures 1.9" in outside diameter, finished in
durable salt resistant bright clear anodizing.
The Fishing Arch is designed to fit around existing canvas bimini and navy style tops. It will not interfere with most side curtains, windshield covers or cockpit covers.
The Fishing Arch has the appearance and strength of a custom welded unit when installed on your boat
Every Fishing Arch includes a standard equipment 4 rod rocket launcher across the top. The rocket launcher is four tapered rod holders anodized gold, with a heavy duty welded butt pin, and full vinyl liner to protect your rods. (if you are just mounting radar and other antennas the rod holders may be deleted for credit)
Every Fishing Arch includes a large (approximately 12” x 12”) radar plate, plus four 4” wide mounting plates which will accommodate up to six additional antennas.
Radar cables, antenna cables and other wiring may be concealed inside the frame

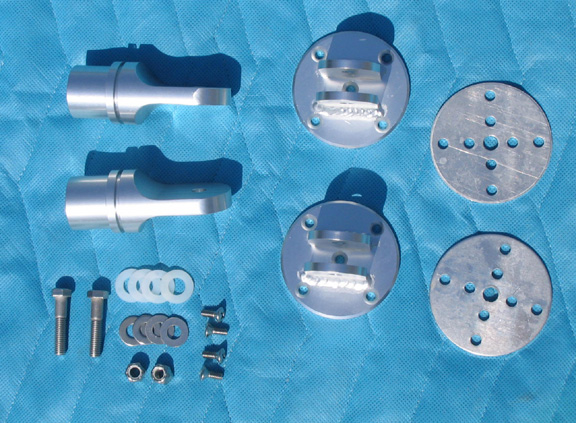

The Fishing Arch is mounted to your boat in four locations with our proprietary “Pin & Pad” mounting hardware, for more details click here. These fittings have nylon bushings which help isolate any vibration in the Fishing Arch from the fiberglass surface of your boat. The “Pin & Pad” fittings also allow easy dismounting of the arch (just remove the four 3/8” bolts) should you wish to store your boat in a building with a low door, etc.
Everything is included for a complete installation on most boats, even backing plates along with instructions and an instructional video detailing all the steps of the installation.

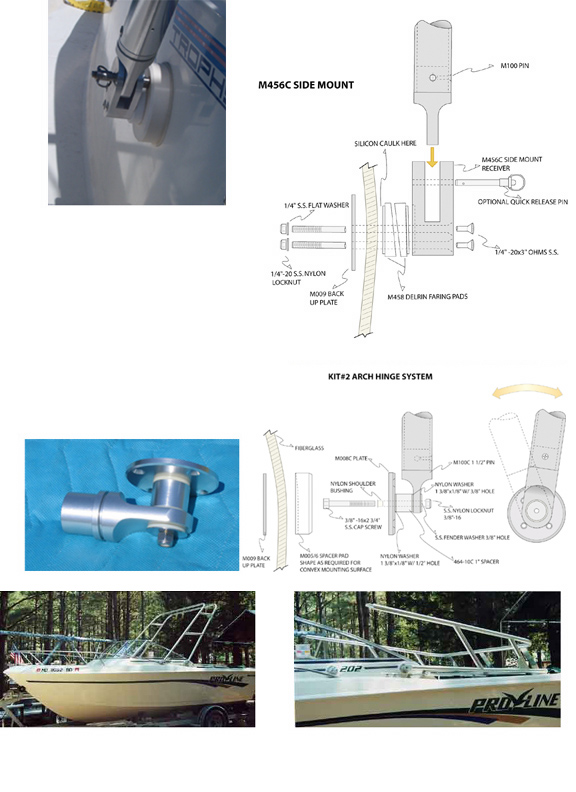

A. Hinge System, our most popular option, allows the Fishing Arch to be folded for increased clearance, normally installed to allow the arch to fold aft into the cockpit area. The Hinge System replaces the standard “Pin & Pad” mounting hardware, with hinge hardware and fairing pads for the aft leg and a custom slotted fitting for the forward leg, allowing the insertion of a quick release pin (also supplied) to allow the arch to be released and folded without the need for tools. $189 ($249 if purchased separately)
B. Need more rod holders? Individual Adjust-O-Launcher aluminum rod holders can be mounted anywhere on the perimeter of the “Trampoline” T-top frame. A unique patented design available exclusively from Atlantic Towers, manufactured from all aluminum in natural aluminum or gold anodized finish Adjust-O-Launchers can be pivoted thru 12 positions for unmatched flexibility (photos use adjusto 1292 and adjusto multiple plus if not too cumbersome, the adjusto disassembled, and adjusto screw) $99 each
55 Watt Deck Lamps Option
55 watt conventional halogen deck flood lamp with replaceable bulb in waterproof housing. Current draw, 4.8 amps each, 9.6 amps a pair at 12 volts. Wire with minimum 14 gauge (always used tinned stranded wire for marine applications). Includes choice of mounting bracket to fit any Atlantic Towers structure. Sold in Pairs
Tower in a Box Arches - Pair MP150 with 464-21 Bracket: $139
Custom Arches - Pair MP150 with 464-20 Bracket: $139
LED deck flood lamp from Lumitec
More light, less current draw than conventional halogen lamps. Current draw less than 1 amp each (less than 2 amps a pair) at 12 volts. Wire with minimum 20 gauge (always used tinned stranded wire for marine applications). Includes Choice of mounting bracket to fit any Atlantic Towers structure. Sold Individually
Tower in a Box Arches - Single MP152 with 464-21 Bracket: $179
Custom Arches - Single MP152 with 64-20 Bracket: $179
E. Anchor/Running Light, a two way navigation lamp installed on an anodized aluminum mast with anodized finish to match the Fishing Arch. Functions as all round light with both sides illuminated, or forward steaming light with just forward half illuminated. Custom fitted shoe allows easy bolt-on installation on centerline of The Fishing Arch. 5” height (MA222A) or 18” height (MA220A) $139
Will the Fishing Arch fit my boat?

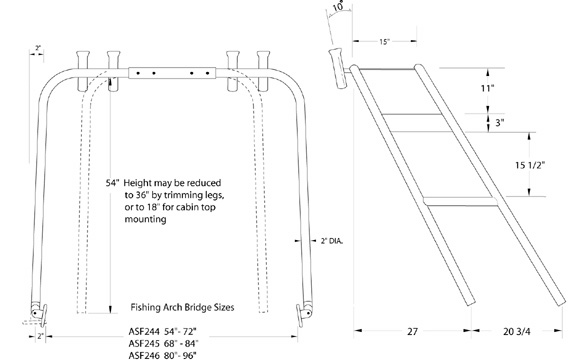

Because of it’s adjustability the Fishing Arch will fit almost every walkaround, cuddy cabin, or express style boat. It has also been installed on deck boats and pontoon boats. (The Fishing Arch is not suitable for flybridge boats) The diagram below shows the dimensions and range of adjustment of the Standard Fishing Arch or just call or email us and give us the year and model of your boat. We maintain a data base with the specs for thousands of boats. We can quickly tell you if the Fishing Arch will fit your boat correctly. (Use Dimension Layout))
Can I install the Fishing Arch myself?
The Fishing Arch was designed for owner installation and is typically no more complicated than installing rod holders or outriggers, just a few more pieces. If you are comfortable with hand tools, the Fishing Arch comes with an instructional video, and all the backing plates and hardware required for a thru bolted installation (Don’t want to install the Fishing Arch yourself? Check our “Services” page for professional installers with whom our customers have had a good experience) (Don’t want to install the Fishing Arch yourself? Check our “Services” page for professional installers with whom our customers have had a good experience)
How is the Fishing Arch shipped to me? Although the Fishing Arch is not heavy it is too large to go by UPS. We have discounted freight arrangements with several trucking companies, which cover all 48 states and Canada. We can also ship to Alaska, Hawaii and any overseas city, call us for details. The Fishing Arch is packed in a single large cardboard carton and normally ships to a commercial address (like your business or marina) east of the Mississippi for $125 or less. West of the Mississippi shipping is normally $200 or less. Residential delivery is additional (call for details) (New Jersey shipping addresses or pick ups at our warehouse must pay 6% sales tax)
What happens if my Fishing Arch is damaged in shipping?
Atlantic Towers wants you to enjoy your boat, not spend the season chasing a freight claim. If your Fishing Arch arrives damaged, just refuse the shipment and we will send you a new one at no additional cost to you.
Can I return my Fishing Arch if I decide I don’t want to keep it?
Atlantic will accept the return of any Standard Structure within 30 days of it’s receipt by you. Simply return the Structure in the original packaging in new condition freight pre-paid and we will refund the purchase price less a 10% restocking fee
Is my Fishing Arch guaranteed?
Yes, for 5 years, see the warranty section of our website for details.
How do I get my Fishing Arch? You can purchase a Fishing Arch directly from Atlantic Towers or our authorized reseller partners around the world.
