Sail Arch® Systems
Universal Sail Arch® Platform for Cruising Boats
Built for sailors who need stronger utility from their stern structure. Support solar arrays, antenna layouts, tender handling, and integrated accessories with a proven Atlantic Towers® architecture.
High-Capacity Options
Schedule 80 Mark 2 options increase stiffness and support larger solar and accessory payloads.
Accessory Ecosystem
Expandable with tender handlers, racks, lighting, radar, communications, and custom mounting kits.
ENGINEERING FOCUS
Sch80 Mark 2

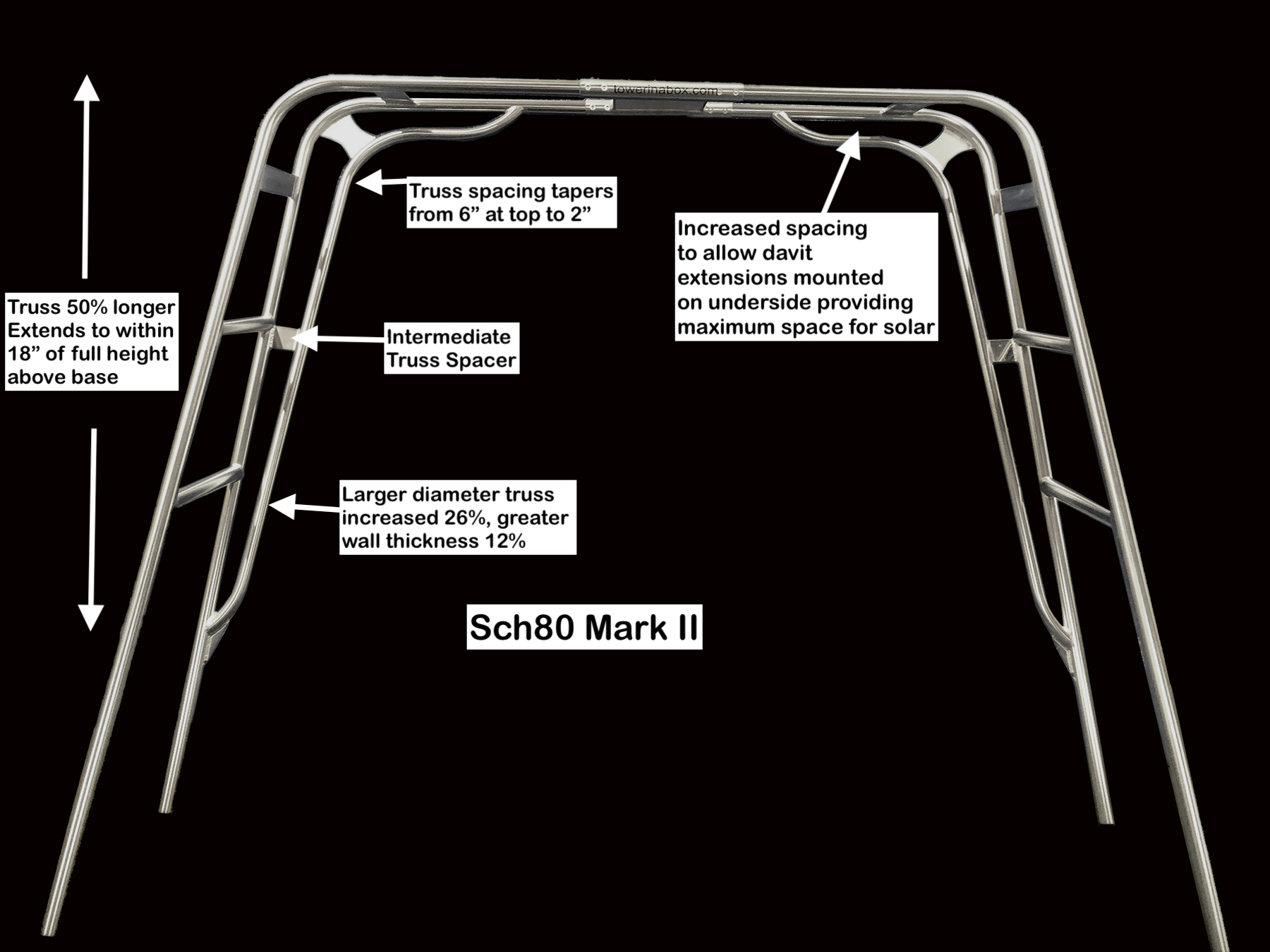

Cruising Sailors want more: more power, bigger tenders, and more usable capability on deck. The Sch 80 Mark 2 Sail Arch® is built for that mission with a larger extended truss for improved lateral stability and higher carrying confidence.
What Sch80 Mark 2 Delivers
- Larger extended truss for increased resistance to lateral motion in heavier seas.
- Grid-ready solar capacity for up to four large panels and more than 1600 watts.
- Accessory-ready platform for Tender Handler, kayak/paddleboard racks, Starlink, and motor cranes.
Reference Media
Technical Center
Instructions, educational and client videos, pricing, accessories and Frequently Asked Questions.
Technical Resources
Model & Price Tables
The live Sail Arch® source contains multiple distinct sizing/price tables. They are separated below by configuration family for easier comparison.
Inline - Standard Sail Arch® (Schedule 40)Group code: TIB101/02
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24350 | 78-94 | 78-94 | $3,250 |
| TIB24400 | 90-106 | 90-106 | $3,250 |
| TIB24500 | 102-118 | 102-118 | $3,350 |
| TIB24600 | 114-130 | 114-130 | $3,450 |
Inline - HiCapacity Sail Arch® (Schedule 80)Group code: TIB101/02SPO1
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24350 | 78-94 | 78-94 | $4,050 |
| TIB24400 | 90-106 | 90-106 | $4,050 |
| TIB24500 | 102-118 | 102-118 | $4,150 |
| TIB24600 | 114-130 | 114-130 | $4,250 |
Inline - Mark 2 HiCapacity (Schedule 80)Group code: TIB101/02MK2
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24350 | 78-94 | 78-94 | $4,725 |
| TIB24400 | 90-106 | 90-106 | $4,725 |
| TIB24500 | 102-118 | 102-118 | $4,950 |
| TIB24600 | 114-140 | 114-130 | $5,150 |
Inline - Extra Wide (Schedule 80)Group code: TIB101/02SPO2
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24400 | 128-142 | 128-142 | $4,600 |
| TIB24500 | 140-154 | 140-154 | $4,725 |
| TIB24600 | 152-166 | 152-166 | $4,825 |
| TIB24650 | 164-178 | 164-178 | $5,225 |
Inline - Mark 2 Extra Wide (Schedule 80)Group code: TIB101/02SPOMK2
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24400 | 128-142 | 128-142 | $5,150 |
| TIB24500 | 140-154 | 140-154 | $5,300 |
| TIB24600 | 152-166 | 152-166 | $5,400 |
| TIB24650 | 164-178 | 164-178 | $5,775 |
Offset - Standard Sail Arch® (Schedule 40)Group code: TIB1015/025
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24350 | 78-90 | 68-80 | $3,350 |
| TIB24400 | 90-106 | 80-96 | $3,350 |
| TIB24500 | 102-118 | 92-108 | $3,450 |
| TIB24600 | 114-130 | 104-120 | $3,575 |
Offset - HiCapacity Sail Arch® (Schedule 80)Group code: TIB1015/025SPO1
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24350 | 78-90 | 68-80 | $4,050 |
| TIB24400 | 90-106 | 80-96 | $4,150 |
| TIB24500 | 102-118 | 92-108 | $4,250 |
| TIB24600 | 114-130 | 104-120 | $4,375 |
Offset - Mark 2 HiCapacity (Schedule 80)Group code: TIB1015/025MK2
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24350 | 80-90 | 68-80 | $4,725 |
| TIB24400 | 90-106 | 80-96 | $4,825 |
| TIB24500 | 102-118 | 92-108 | $4,925 |
| TIB24600 | 114-130 | 104-120 | $5,075 |
Offset - Extra Wide HiCapacity (Schedule 80)Group code: TIB1017/1027SPO1
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24400 | 116-144 | 106-134 | $4,625 |
| TIB24500 | 128-156 | 118-146 | $4,725 |
| TIB24600 | 140-168 | 130-158 | $4,825 |
| TIB24650 | 152-180 | 142-170 | $5,475 |
Offset - Mark 2 Extra Wide HiCapacity (Schedule 80)Group code: TIB1017/1027SPOMK2
| Model | Forward Legs (in) | After Legs (in) | Price |
|---|---|---|---|
| TIB24400 | 128-144 | 118-134 | $5,400 |
| TIB24500 | 140-156 | 140-156 | $5,525 |
| TIB24600 | 152-168 | 142-158 | $5,675 |
| TIB24650 | 164-180 | 154-170 | $6,099 |
Technical Drawings
Select a drawing by name, then open it to zoom in or download the original PNG.
Sail Arch overview (1 of 5)
Looking for TIB11100 / TIB11200? View the Super Sail Arch drawing.
Precision Accessory Modules
Option cards align with live sail-accessory offerings. Multi-image options include compact in-card sliders for faster visual comparison.
Tender Handler
$1,980KIT83000 for all Sail Arches except Super Sail Arch. Articulated pivot design provides reach to lift tenders behind sugar scoops and swim platforms.
Add to System

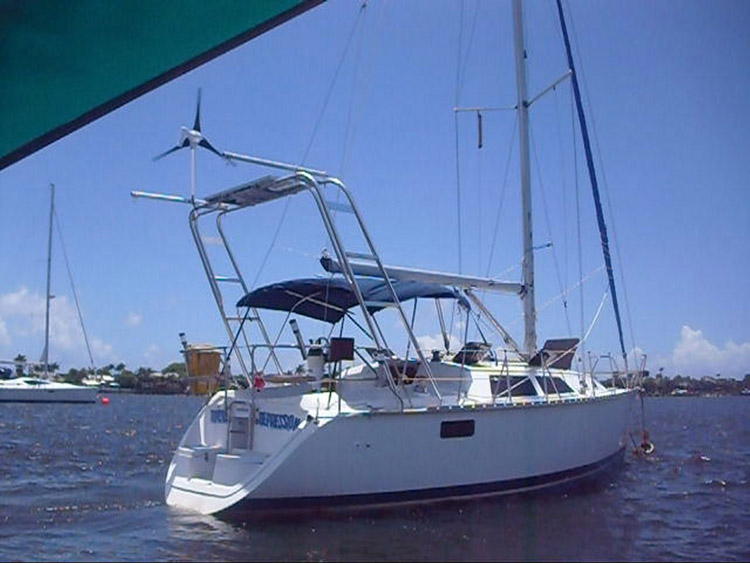

Clamp on Wind Generator Base & Mast
$499Model KIT7700
Clamped mast and receiver system for wind-generator integration with fixed or removable pin options.
Add to System

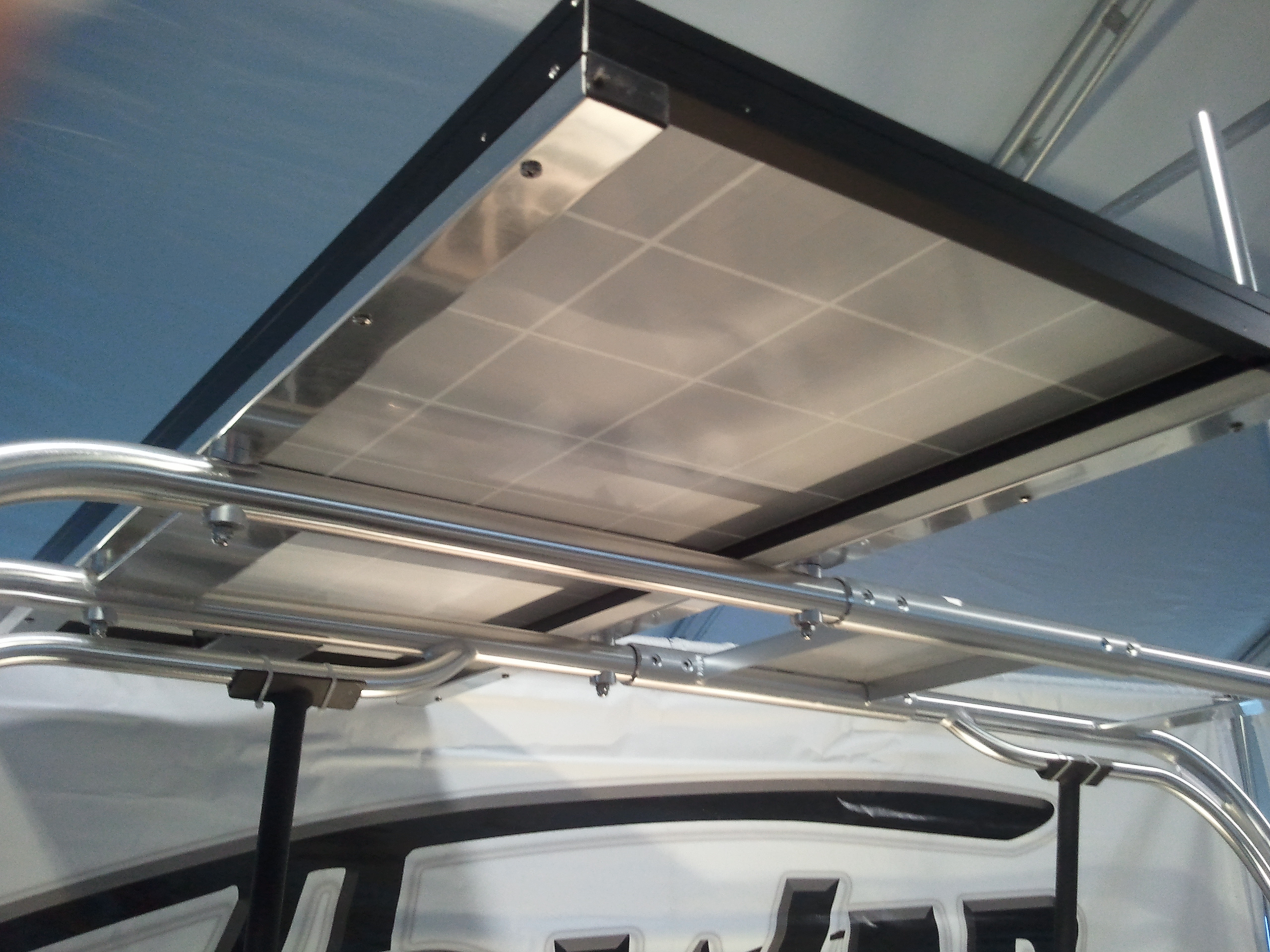

Solar Panel Mounting Kit
$339Model KIT76000
Kit includes rectangular aluminum tubes and curved washers for flexible arch-frame solar placement.
Add to System
Adjust-O-Launcher
$139Model AJ30500
Patented clamp-on rod holder pivots through multiple positions and fits standard 1-1/2 inch marine pipe.
Select Options
Paddleboard Rack
$449Anodized aluminum rack with tie-down points and grip rails. Available in clamp-on and bolt-on versions.
Select Version

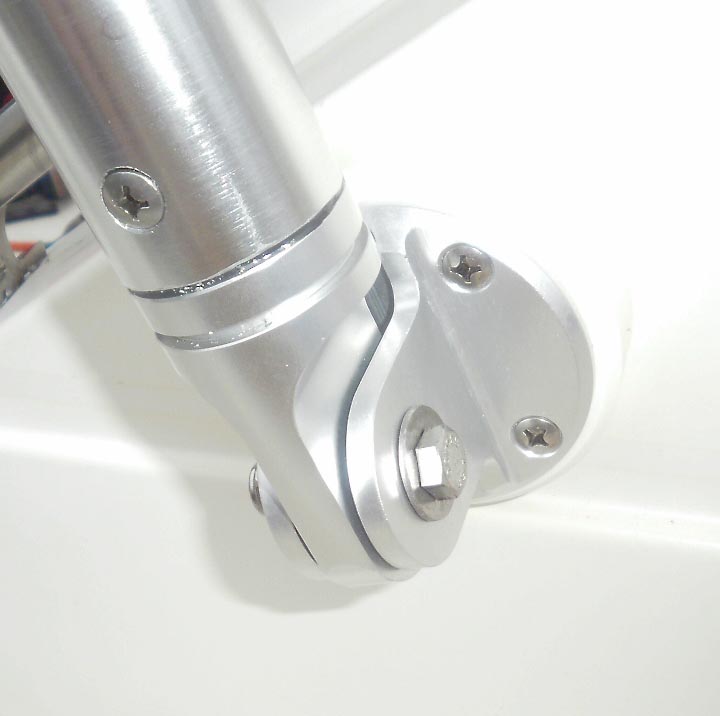

Pin & Pad Hardware
IncludedProprietary nylon-bushed mounting system that minimizes vibration and allows quick dismounting for transport.
Standard FittingCustomer Photo Gallery
Real boats. Real-world inspiration.
See how Atlantic Towers® systems come together across customer-submitted installations.
Explore More Client Installations
8,000+ customer-submitted installation photos
Product FAQs
Frequently Asked Questions
The Arch was designed for owner installation and is typically no more complicated than installing rod holders or outriggers, just a few more pieces. If you are comfortable with hand tools, the Arch comes with instructions and all the backing plates and hardware required for a thru bolted installation. (Don't want to install the Arch yourself? Check our Services page for professional installers with whom our customers have had a good experience.)
