66 × 90 in
Sunshade size
Tower in a Box® · Center Console
Super Trampoline T-Top
A larger welded aluminum T-Top with a 66 by 90 inch sunshade, full side handrails, six mounting points, and adjustable legs for wider center-console layouts.
Made in the USAFreight shipping
Up to 64 in
Console width
6 points
Mounting locations
ARCHIVED PRODUCT INFORMATIONThis page preserves Super Trampoline T-Top specifications and reference material. Explore current Center Console T-Top options for availability and fit guidance.
Construction and fit
Super Trampoline construction and fit.
A welded aluminum frame, integrated handrails, adjustable legs, and broad console-area coverage shape this larger T-Top configuration.
Heavy-duty welded frame
Schedule 40 pipe and schedule 80 cross members support the larger Super Tramp structure.
The legacy specification describes a high-strength welded marine-grade aluminum frame with 1.9-inch outside-diameter schedule 40 pipe and extra-thick schedule 80 cross members, finished in bright clear anodizing for salt resistance.
- Frame detail
- 1.9-inch outside diameter marine-grade aluminum pipe
Integrated handrails and bracing
Full side handrails and welded braces are built into the structure.
The Super Tramp includes full port and starboard handrails, double torsion-bar stiffeners, and one-piece welded grab rails with cross bracing in the supporting legs.
- Structure detail
- Welded integral handrails and braces
66 by 90 inch sunshade
Generous overhead coverage for the console area of larger center-console boats.
The legacy page specifies a 66-inch-wide by 90-inch-long Super Trampoline-style sunshade intended to cover the console area of boats 30 feet and over.
- Coverage
- 66 inches wide by 90 inches long
Adjustable console fit
Leg spacing adjusts for consoles up to 64 inches wide.
A custom extruded clamp assembly makes leg-spacing adjustment straightforward while providing a permanent attachment when tightened. Wide-based leg options were offered for consoles with side-access doors.
- Fitment note
- Console widths up to 64 inches

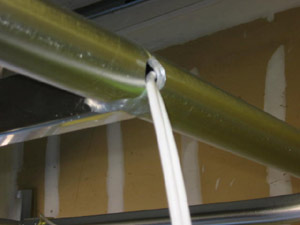

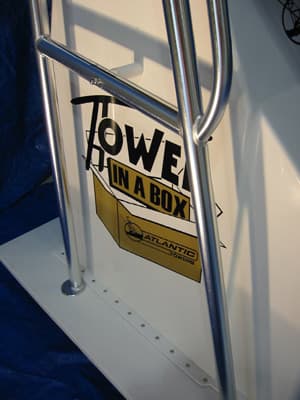

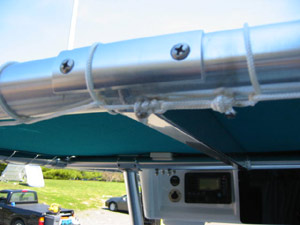

Concealed wiring and six-point mounting
Electrical wiring can be routed inside the frame, with six mounting points for most installations.
The source describes concealed wiring inside the frame and six mounting points for most installations, with additional standoffs and braces available for unusual console styles or heavier equipment.
- Mounting
- Six mounting points
Four trampoline color choices
The historical configuration included four fabric colors at no additional charge.
The available color set is retained here as historical product reference. Confirm current fabric availability and finish options with Atlantic Towers before ordering.
- Historical option
- Four trampoline fabric colors

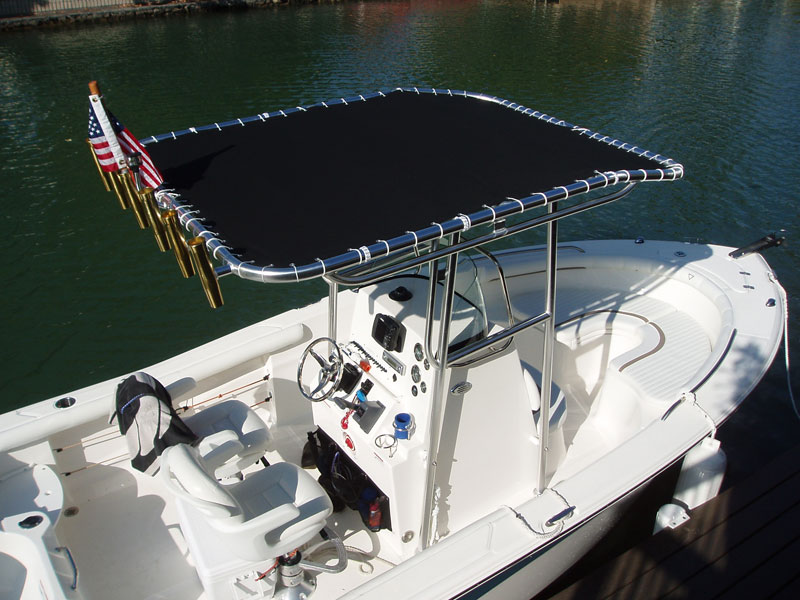

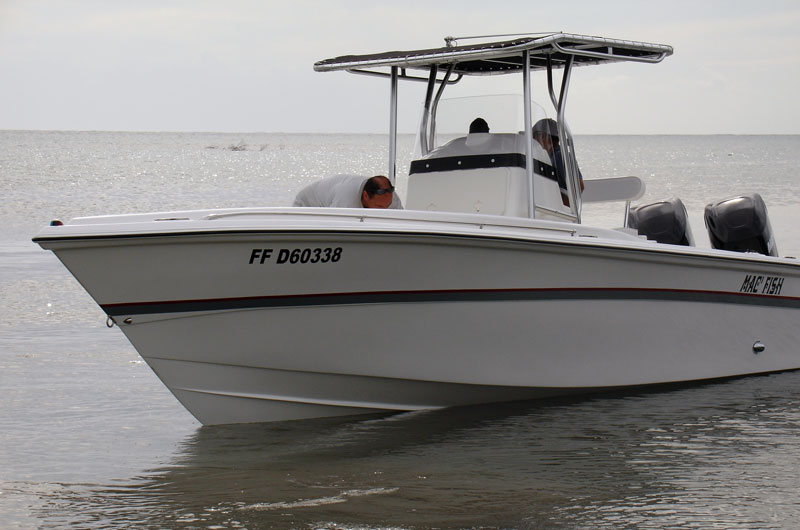

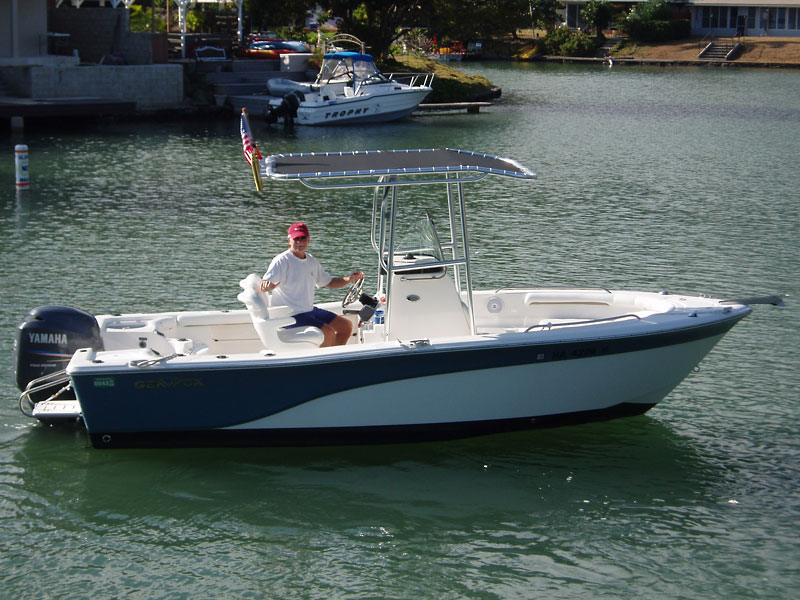

Product reference photography
Super Trampoline installation and detail views.
Compatible add-ons
Options for the Super Trampoline T-Top.
Review the individual add-on pages or contact Atlantic Towers for current availability, fitment, and pricing.

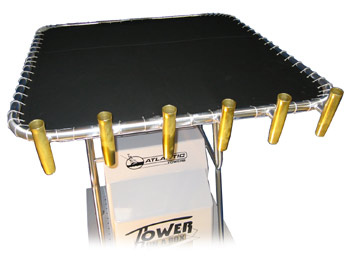

Welded Six Rod Rocket Launcher
Diagonal Brace Option
Adjust-O-Launcher
55 Watt Deck Lamps

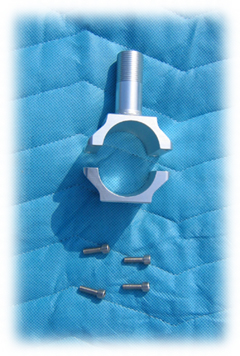

Antenna Bracket
Anchor / Running Light
Starboard Mounting Bars
Need fitment help before ordering?
Contact our team to review console dimensions and select the best leg and supporting-leg setup.
Request Fitment Review1-800-831-8889
Product FAQs
Frequently Asked Questions
Historical guidance states that Super Trampoline Model TIB7172/75 fit 90% of center-console boats 23 feet and over. Inboard-powered boats with tilting consoles may require special hardware or leg configurations. View the standard dimension drawing or the metric drawing.
