See Other T-Top Options
Atlantic TowersPhotofinder
Photofinder

Radius Pro T-Tops

Radius Pro T-Tops
Sunbrella $2199
Hardtop $2399

Two Top Materials To Choose From.

Welded 5 Rod Holders Only $250

Radius Pro Trampoline T-Top Radius Polycarbonate T-Top

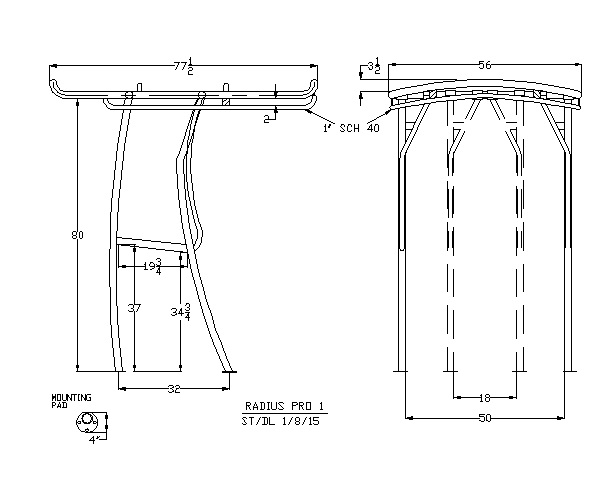

The new RADIUS line of T-Tops introduces curved style in every piece of aluminum.
Every RADIUS T-Top features nearly 2" diameter schedule 40 anodized aluminum pipe, fully welded leg and top assemblies, proprietary clamp assemblies for unlimited adjustment, and
complete installation hardware kits.

Our RADIUS Pro T-Tops feature full overhead and leg welded handrails, a choice of two leg configurations, and offset mounting bases for a close fit to the console.


Radius Trampoline T-Top Sunbrella Radius Trampoline T-Top Polygal

made in the USA View all T-Top Options

Click to see a comprehensive list of boats our
"Tower In A Box" T-Tops have been installed on.

Universal T-Top Design Makes Installations on Hundreds of Other Makes and Models Possible

Radius Pro Polycarbonate T-Top

Radius Polycarbonate T-Top Radius Polycarbonate T-Top
Radius Polycarbonate T-Top Underside Bimini Buster Walkaround Tee Polycarb Hardtop Super Strong Honeycomb Extruded Polycarbonate Panel
Polygal

Polycarbonate plastics have been used in marine applications for many years. For example, most hatches are manufactured with a metal frame into which is set a translucent polycarbonate. Polycarbonates are also used in everything from bullet proof vehicle windows to commercial architecture roofing and siding.

Our ATL6 extrusion provides a recess to allow the polycarbonate honeycomb panel to fit nearly flush with the top surface, yet allows for the very different expansion characteristics of aluminum extrusions and polycarbonate plastics without visible gaps or fasteners.


Radius Pro T-Top Sunbrella

Radius Trampoline T-Top Sunbrella2 Radius Trampoline T-Top Sunbrella

Choiceof 5 “Trampoline” colors at no additional charge.

Available Colors


Atlantic Towers manufactures Radius T-Tops with or without a fully welded rocket launcher assembly (gold anodized rod holders are a Special Order option). A variety of accessory kits and fittings make it easy to add flat plates for antennas, navigation lights, deck flood lamps, etc. at any time.


Will the RADIUS Pro T-top fit my center console boat?


Available Options:

KIT24240 Diagonal Brace Option
A few center console boats may provide limited areas to install the standard side brace, or if you have mounted a great deal of heavy equipment on your Trampoline T-Top, such as electronics enclosures, radar, etc, you may want the added stability and support of diagonal sway braces. Fully adjustable and may be secured either on top of the console or on it's forward face. $289

diagonal brace diagonal brace
diagonal brace
Individual Adjust-O-Launcher Option (AJ30500)
Aluminum rod holders can be mounted anywhere on the perimeter of the "Trampoline" T-top frame. A unique patented design available exclusively from Atlantic Towers, manufactured from all aluminum in natural aluminum anodized finish Adjust-O-Launchers can be pivoted thru 12 positions for unmatched flexibility. $99 each / 4 or more $89 each
Gold Anodized finish available for special order.
Please call 732-237-8800
adjusto

adjusto adjust drawing

deck lamps

55 Watt Deck Lamps Option
55 watt conventional halogen deck flood lamp with replaceable bulb in waterproof housing. Current draw, 4.8 amps each, 9.6 amps a pair at 12 volts. Wire with minimum 14 gauge (always used tinned stranded wire for marine applications). Includes choice of mounting bracket to fit any Atlantic Towers structure.
Sold in Pairs
Tower in a Box Arches - Pair MP15000 with KIT54000 Light Mount: $149
Custom Arches - Pair MP150 with KIT54000 Light Mount: $149

antenna bracket

KIT22100 Antenna Bracket Option
Antenna Bracket threaded 1"-14 for mounting VHF, GPS and other antennas. Clamps to perimeter of "Trampoline" t-top for fast installation. $109

anchor running light option

Anchor/Running Light Option
A two way navigation lamp installed on an anodized aluminum mast with anodized finish to match the "Trampoline" T-top. Functions as all round light with both sides illuminated, or forward steaming light with just forward half illuminated. Custom fitted shoe allows easy bolt-on installation on perimeter of "Trampoline" T-top. Choose 5" height or 18" height. $169
MA22000A 5" Anchor Running Light with LED Head
MA22000P 5" Anchor Running Light with Perko 2 Way Head
MA22200A 18" Anchor Running Light with LED Head
MA22200P 18" Anchor Running Light with Perko 2 Way Head
KIT21000 Pair of Starboard™ Mounting Bars Option
The pair of Starboard™ Mounting Bars allows installation of equipment such as radar by bolting thru top fabric into mounting bars. May also be used to support overhead electronics consoles. $159
starboard mounting barsstarboard mounting bars


**NOTE: There is a 10% re-stocking charge for cancelled or returned merchandise**

Due to our dedication to continued product improvement, we reserve the right to make changes without notice.
