This is a big beefy structure for larger boats. The sunshade is a generous 66" wide by 90" long, with full port and starboard side handrails and double "torsion bar" stiffeners. The legs incorporate one piece welded grab rails with cross bracing and easily adjust to any width console. For boats with in console head compartments, available wide based legs allow installation around console side doors.
The Super Tramp has a high strength welded frame of schedule 40 marine grade aluminum pipe which measures 1.9" outside diameter with extra thick schedule 80 cross members, finished in durable salt resistant bright clear anodizing.
Every Super Tramp T-top has welded integral hand rails and braces
66" x 90" Super Trampoline Style Sunshade comfortably covers the console area of boats to 30' or more.
Fully adjustable legs fit console widths up to 64" wide, Custom extruded clamp assembly makes adjusting beam with between legs easy, but provides permanent attachment when tightened.
Wiring may be concealed inside the frame.
Choice of 4 “Trampoline” colors at no additional charge.
Six mounting points secure the Super Trampoline T-top for most installations, Optional additional standoffs and braces are available for unusual console styles or heavy duty applications. There are no "give-ups" here. Our quality of materials and and TIG welding equal or exceed that of custom shops.
Aerodynamic styling helps wind pressure push down on the "Super Trampoline" T-top when towing or running in flat water.

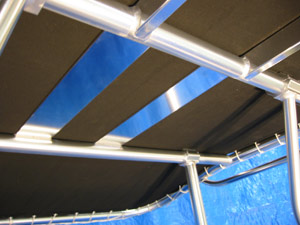

Welded top plates to support a radar or overhead console box are standard equipment on the Super Trampoline T-top.
EVERYTHING IS INCLUDED!
Everything you need for a complete installation on most boats, even backing plates
(call our tech support for alternate methods if you cannot access under deck)
and mounting bolts is included with your "Trampoline" T-Top.
Welded Six Rod Rocket Launcher Option
Features six aluminum tapered rod holders anodized in gold. Each rod holder features a welded butt pin and vinyl liner to protects your rods. $400
Diagonal Brace Option
A few center console boats may provide limited areas to install the standard side brace, or if you have mounted a great deal of heavy equipment on your Trampoline T-Top, such as electronics enclosures, radar, etc, you may want the added stability and support of diagonal sway braces. Fully adjustable and may be secured either on top of the console or on it's forward face. $269
Individual Adjust-O-Launcher Option
Aluminum rod holders can be mounted anywhere on the perimeter of the "Trampoline" T-top frame. A unique patented design available exclusively from Atlantic Towers, manufactured from all aluminum in natural aluminum or gold anodized finish Adjust-O-Launchers can be pivoted thru 12 positions for unmatched flexibility. $99 each / 4 or more $89 each
55 Watt Deck Lamps Option
55 watt conventional halogen deck flood lamp with replaceable bulb in waterproof housing. Current draw, 4.8 amps each, 9.6 amps a pair at 12 volts. Wire with minimum 14 gauge (always used tinned stranded wire for marine applications). Includes choice of mounting bracket to fit any Atlantic Towers structure. Sold in Pairs
Tower in a Box Arches - Pair MP150 with 464-21 Bracket: $139
Custom Arches - Pair MP150 with 464-20 Bracket: $139
LED deck flood lamp from Lumitec
More light, less current draw than conventional halogen lamps. Current draw less than 1 amp each (less than 2 amps a pair) at 12 volts. Wire with minimum 20 gauge (always used tinned stranded wire for marine applications). Includes Choice of mounting bracket to fit any Atlantic Towers structure. Sold Individually
Tower in a Box Arches - Single MP152 with 464-21 Bracket: $179
Custom Arches - Single MP152 with 64-20 Bracket: $179
Antenna Bracket Option
Antenna Bracket threaded 1"-14 for mounting VHF, GPS and other antennas. Clamps to perimeter of "Trampoline" t-top for fast installation. $89
Anchor/Running Light Option
A two way navigation lamp installed on an anodized aluminum mast with anodized finish to match the "Trampoline" T-top. Functions as all round light with both sides illuminated, or forward steaming light with just forward half illuminated. Custom fitted shoe allows easy bolt-on installation on perimeter of "Trampoline" T-top. Choose 5" height (MA222A) or 18" height (MA220A). $139
Will the “Super Trampoline” T-top fit my center console boat?
Because of it’s adjustability the Super “Trampoline” T-top (Model TTS7172/75) will fit 90% of center console boats 23’ and over. Inboard powered center console boats, where all or part of the console tilts, it may require special hardware or leg configurations.
Super “Trampoline” T-top Model TTS7172/75
Click image for enlarged view.
Click here for metric dimensions.
Fitting Options for Differing Center Consoles
A special leg configuration are available as an option. For those center consoles with a large side access door to a head compartment or storage area, Supporting Legs Model TTS7374 provides greater spread between legs and a higher cross bar, which will clear most side openings.
Supporting Legs Model TTS7374
Click image for enlarged view.
Can I install the “Super Trampoline” T-top myself?
The “Super Trampoline” T-top was designed for owner installation and is typically no more complicated than installing rod holders or outriggers, just a few more pieces. If you are comfortable with hand tools, the “Super Trampoline” T-top comes with instructions and all the backing plates and hardware required for a thru bolted installation (If your boat does not allow access for thru bolting, call us and we can explain alternate methods. (Don't want to install the Super Trampoline T-Top yourself? Check our Services page for professional installers with whom our customers have had a good experience)
How is the “Super Trampoline” T-top shipped to me? Although the “Super Trampoline” T-top is not heavy it is too large to go by UPS. We have discounted freight arrangements with several trucking companies, which cover all 48 states. We can also ship to Alaska, Hawaii and any overseas city, call us for details. The “Super Trampoline” T-top is packed in two cardboard cartons (like a mattress) and normally ships to a commercial address (like your business or marina) east of the Mississippi for $150 or less. West of the Mississippi shipping is normally $250 or less. Residential delivery is additional (call for details). (New Jersey shipping addresses or pick ups at our warehouse must pay 7% sales tax)
What happens if my “Super Trampoline” T-top is damaged in shipping?
Atlantic Towers wants you to enjoy your boat, not spend the season chasing a freight claim. If your “Super Trampoline” T-top arrives damaged, just refuse the shipment and we will send you a new one at no additional cost to you.
Can I return my “Super Trampoline” T-top if I decide I don’t want to keep it?
Atlantic will accept the return of any Standard Structure within 30 days of it’s receipt by you. Simply return the Structure in the original packaging in new condition freight pre-paid and we will refund the purchase price less a 10% restocking fee
Is my “Super Trampoline” T-top guaranteed?
Yes, for 5 years, see the warranty section of our website for details.
How do I get my “Super Trampoline” T-top? You can purchase a "Super Trampoline" T-Top directly from Atlantic Towers or our authorized reseller partners around the world.
