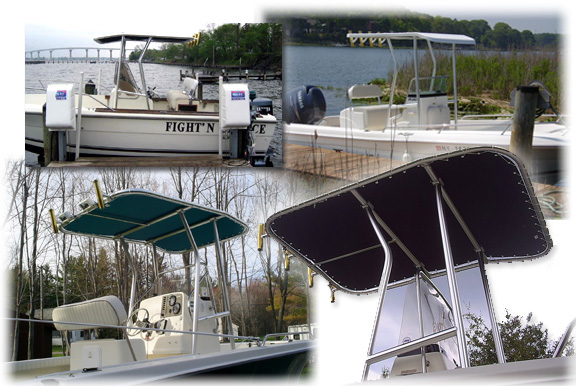

Trampoline T-Top: $1499 ($1699 with 4 rod rocket launcher)
High Strength welded frame of schedule 40 marine grade aluminum pipe 1 1/2" I.D. which measures 1.9" outside diameter, finished in durable salt resistant bright clear anodizing.
Fully adjustable legs fit console widths of up to 55”, offset base pads allow legs
to fit tightly to sides of console.
56” x 77 1/2” “Trampoline” style sunshade comfortably covers the console area of most boats 16’ to 25’. Light weight (approximate. 70 lbs) will not upset the stability of even small center console boats.
Wiring may be concealed inside the frame.
Choice of 4 “Trampoline” colors at no additional charge.
Six mounting points secure the “Trampoline” T-top to the deck in four locations
and to each side of the center console.
Aerodynamic styling helps wind pressure push down on the "Trampoline" T-top when towing or running in flat water.
Custom extruded top clamp assembly makes adjusting beam width between legs easy,
but provides permanent attachment when tightened.
The "Trampoline" T-Top is extremely strong.
It easily supports the weight of a 230 lb. man and more.
Everything you need for a complete installation on most boats, even backing plates
(call our tech support for alternate methods if you cannot access under deck)
and mounting bolts is included with your "Trampoline" T-Top.
Welded Four Rod Rocket Launcher Option
Features four aluminum tapered rod holders anodized in gold. Each rod holder features a welded butt pin and vinyl liner to protect your rods. $289
Diagonal Brace Option
A few center console boats may provide limited areas to install the standard side brace, or if you have mounted a great deal of heavy equipment on your Trampoline T-Top, such as electronics enclosures, radar, etc, you may want the added stability and support of diagonal sway braces. Fully adjustable and may be secured either on top of the console or on it's forward face. $269
Individual Adjust-O-Launcher Option
Aluminum rod holders can be mounted anywhere on the perimeter of the "Trampoline" T-top frame. A unique patented design available exclusively from Atlantic Towers, manufactured from all aluminum in natural aluminum or gold anodized finish Adjust-O-Launchers can be pivoted thru 12 positions for unmatched flexibility. $99 each / 4 or more $89 each
55 Watt Deck Lamps Option
55 watt conventional halogen deck flood lamp with replaceable bulb in waterproof housing. Current draw, 4.8 amps each, 9.6 amps a pair at 12 volts. Wire with minimum 14 gauge (always used tinned stranded wire for marine applications). Includes choice of mounting bracket to fit any Atlantic Towers structure. Sold in Pairs
Tower in a Box Arches - Pair MP150 with 464-21 Bracket: $139
Custom Arches - Pair MP150 with 464-20 Bracket: $139
LED deck flood lamp from Lumitec
More light, less current draw than conventional halogen lamps. Current draw less than 1 amp each (less than 2 amps a pair) at 12 volts. Wire with minimum 20 gauge (always used tinned stranded wire for marine applications). Includes Choice of mounting bracket to fit any Atlantic Towers structure. Sold Individually
Tower in a Box Arches - Single MP152 with 464-21 Bracket: $179
Custom Arches - Single MP152 with 64-20 Bracket: $179
Antenna Bracket Option
Antenna Bracket threaded 1"-14 for mounting VHF, GPS and other antennas. Clamps to perimeter of "Trampoline" t-top for fast installation. $89
Anchor/Running Light Option
A two way navigation lamp installed on an anodized aluminum mast with anodized finish to match the "Trampoline" T-top. Functions as all round light with both sides illuminated, or forward steaming light with just forward half illuminated. Custom fitted shoe allows easy bolt-on installation on perimeter of "Trampoline" T-top. Choose 5" height (MA222A) or 18" height (MA220A). $149
Pair of Starboard™ Mounting Bars Option
The pair of Starboard™ Mounting Bars allows installation of equipment such as radar by bolting thru top fabric into mounting bars. May also be used to support overhead electronics consoles. $139
Split Couplings Option
Split Couplings installed just above the fore and aft cross bar in each supporting leg, this allows the upper portion of the T-top to be lifted off by removing (8) eight allen screws. If you store your boat in a garage or building with limited door or ceiling clearance, these couplings allow you to install a T-top and still get your boat inside. (special order only) $290
Will the "Trampoline" T-top fit my center console boat?
Because of it's adjustability the Basic "Trampoline" T-top (Model TTS5152/55) will fit 90% of center console boats 25' and under. Inboard powered center console boats, where all or part of the console tilts, it may require special hardware or leg configurations.
Basic “Trampoline” T-top Model TTS5152/55
Click image for enlarged view.
Click here for metric dimensions.
Fitting Options for Differing Center Consoles
Two special leg configurations are available as an option. For those center consoles with a large side access door to a head compartment or storage area, Supporting Legs Model TTS5354 provides greater spread between legs and a higher cross bar, which will clear most side openings.
Please don't hesitate to call us with any questions or to discuss your special mounting needs.
Basic "Trampoline" T-top Model TTS5152/55
Click image for enlarged view.
Click here for metric dimensions.
Supporting Legs Model TTS5354
Click image for enlarged view.
Click here for metric dimensions.
Supporting Legs Model TTS6162 is specially designed to work with smaller, lower consoles found on Rigid Inflatable Boats. The fore aft distance between the legs is smaller and the crossbar is lower. Other hardware is available to deal with mounting legs at different elevations or side mounting legs.
Supporting Legs Model TTS6162
Click image for enlarged view.
Click here for metric dimensions.
Can I install the “Trampoline” T-top myself?
The “Trampoline” T-top was designed for owner installation and is typically no more complicated than installing rod holders or outriggers, just a few more pieces. If you are comfortable with hand tools, the “Trampoline” T-top comes with instructions and all the backing plates and hardware required for a thru bolted installation (If your boat does not allow access for thru bolting, call us and we can explain alternate methods. (Don't want to install the Trampoline T-Top yourself? Check our Services page for professional installers with whom our customers have had a good experience)
How is the “Trampoline” T-top shipped to me? Although the “Trampoline” T-top is not heavy it is too large to go by UPS. We have discounted freight arrangements with several trucking companies, which cover all 48 states and Canada. We can also ship to Alaska, Hawaii and any overseas city, call us for details. The “Trampoline” T-top is packed in a single large cardboard carton (like a mattress) and normally ships to a commercial address (like your business or marina) east of the Mississippi for $125 or less. West of the Mississippi shipping is normally $200 or less. Residential delivery is additional (call for details). (New Jersey shipping addresses or pick ups at our warehouse must pay 7% sales tax)
What happens if my “Trampoline” T-top is damaged in shipping?
Atlantic Towers wants you to enjoy your boat, not spend the season chasing a freight claim. If your “Trampoline” T-top arrives damaged, just refuse the shipment and we will send you a new one at no additional cost to you.
Can I return my “Trampoline” T-top if I decide I don’t want to keep it?
Atlantic will accept the return of any Standard Structure within 30 days of it’s receipt by you. Simply return the Structure in the original packaging in new condition freight pre-paid and we will refund the purchase price less a 10% restocking fee
Is my “Trampoline” T-top guaranteed?
Yes, for 5 years, see the warranty section of our website for details.
How do I get my “Trampoline” T-top? You can purchase a "Trampoline" T-Top directly from Atlantic Towers or our authorized reseller partners around the world.
