All models include custom snap
in cover panel in radar plate!

See Other Arch Options

Atlantic TowersPhotofinder
Photofinder

Sail Arch

See how these customers installed their Sail Arch:

DIY Solar Arch Install | DIY Stern Arch Install
By Sail Before Sunset | By Sail to Utopia
By Sailing Miss Lone Star Season 9 | By Sailing Miss Lone Star Season 4
Solar Arch

Download Powerpoint | Letter

Mounting Accessories to your Sail Arch
Beneteau Install
Sail Arch Installation Tips

[UPDATED] Click to see an updated list of sailing yachts
our "Tower In A Box" Sail Arches have been installed on.

Universal Arch Design Makes Installations on Hundreds of Other Makes and Models Possible

Radar Arch Collage

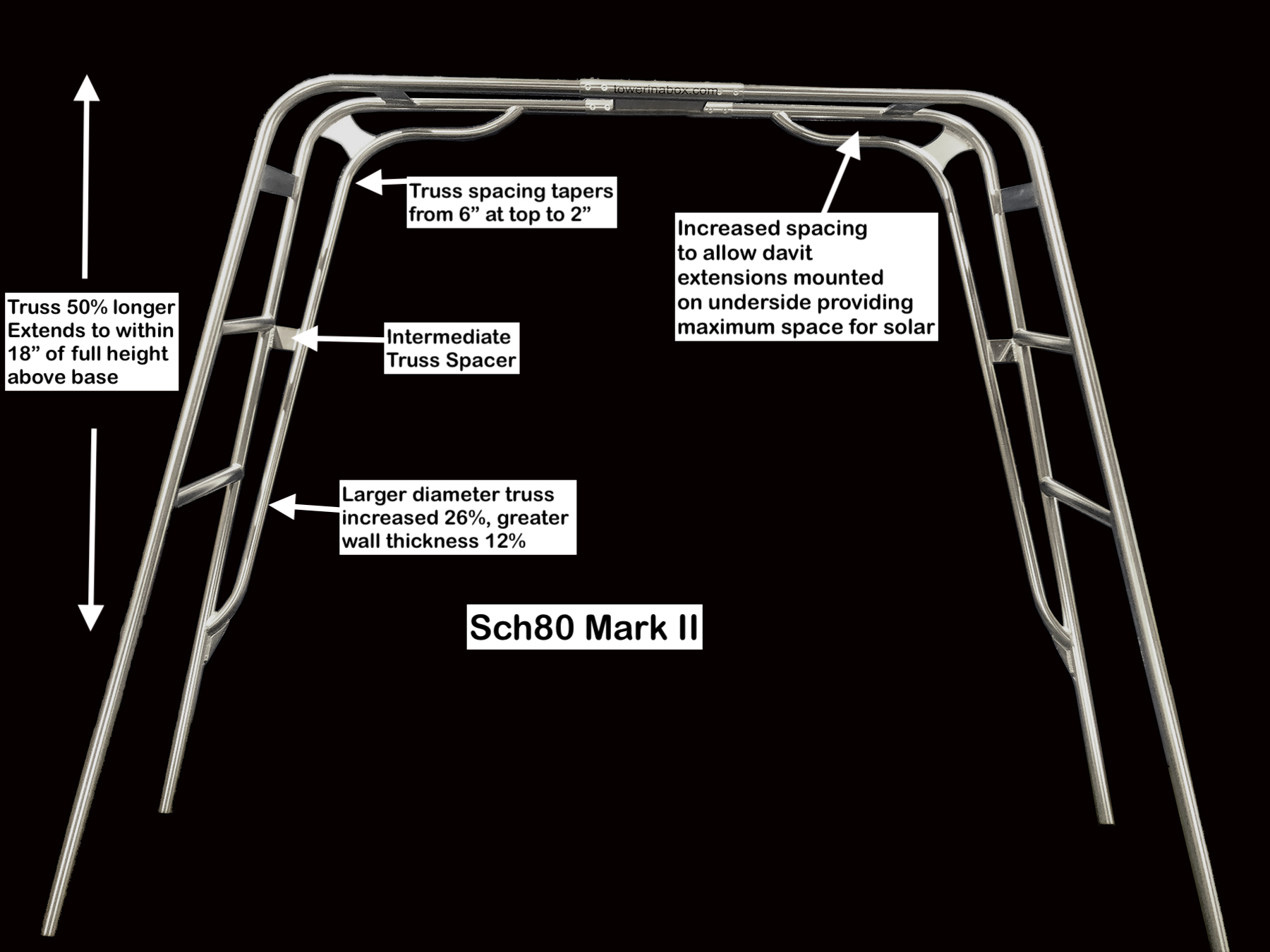

Sch 80 Mark 2

Cruising Sailors want More! More Power, Bigger Tenders, More stuff! Our new Sch 80 Mark2 Sail Arch meets those needs, with a Larger extended truss to provide increased resistance to lateral motion and the ability to easily handle a grid system with up to four large solar panels for morethan 1600 watts of solar. Plus all of our accessories, Tender Handler, Kayak/Paddleboard racks, Starlink antennas, Motor Cranes and more






Standard Sail Arch, distance between forward legs and after legs is the same


InLine
Mounting Centers Inches   Forward Legs   After Legs
     Minimum   Maximum   Minimum   Maximum
TIB101/02  Sail Arch Standard Schedule 40
TIB24350 78 90 78 90  $   2,600.00
TIB24400 88 100 88 100  $   2,600.00
TIB24500 92 112 92 112  $   2,700.00
TIB24600 104 123 104 123  $   2,800.00

TIB101/02SPO1  Sail Arch HiCapacity Schedule 80
TIB24350 78 90 78 90  $   3,200.00
TIB24400 88 100 88 100  $   3,200.00
TIB24500 92 112 92 112  $   3,300.00
TIB24600 104 123 104 123  $   3,400.00

TIB101/02SPO2 Sail Arch HiCapacity Schedule 80 Extra Wide
TIB24400 118 130 118 130  $   3,700.00
TIB24500 128 140 128 140  $   3,900.00
TIB24600 138 150 138 150  $   4,000.00
TIB24650 148 160 148 160  $   4,300.00

TIB101/02MK2 Mark 2 Sail Arch HiCapacity Schedule 80
TIB24350 78 90 78 90  $   3,700.00
TIB24400 88 100 88 100  $   3,700.00
TIB24500 92 112 92 112  $   3,800.00
TIB24600 104 123 104 123  $   3,900.00

TIB101/02SPOMK2 Mar 2 Sail Arch HiCapacity Schedule 80 Extra Wide
TIB24400 118 130 118 130  $   4,200.00
TIB24500 128 140 128 140  $   4,200.00
TIB24600 138 150 138 150  $   4,300.00
TIB24650 148 160 148 160  $   4,400.00
Offset
Mounting Centers Inches Forward Legs   After Legs
     Minimum   Maximum   Minimum   Maximum
TIB1015/025 Sail Arch Standard Schedule 40 Legs Offset
TIB24350 78 90 68 80  $   2,700.00
TIB24400 88 100 78 90  $   2,700.00
TIB24500 92 112 82 102  $   2,800.00
TIB24600 104 123 94 113  $   2,900.00

TIB1015/025SPO1 Sail Arch HiCapacity Schedule 80 Legs Offset
TIB24350 78 90 68 80  $   3,300.00
TIB24400 88 100 78 90  $   3,300.00
TIB24500 92 112 82 102  $   3,400.00
TIB24600 104 123 94 113  $   3,500.00

TIB1017/1027SPO1 Sail Arch HiCapacity Schedule 80 Xtra Wide Legs Offset
TIB24400 118 130 108 120  $   3,700.00
TIB24500 128 140 118 130  $   3,800.00
TIB24600 138 150 128 140  $   4,100.00
TIB24650 148 160 118 150  $   4,400.00
Super Sail In Line
Mounting Centers Inches   Forward Legs   After Legs
     Minimum   Maximum   Minimum   Maximum
TIB111/112 Super Sail Archch
TIB34600 120 170 120 170  $   5,400.00
TIB34650 150 200 150 200  $   6,200.00
Super Sail Offset
Mounting Centers Inches   Forward Legs   After Legs
     Minimum   Maximum   Minimum   Maximum
TIB1115/125 Super Sail Archch
TIB34600 120 170 120 170  $   5,600.00
TIB34650 150 200 150 200  $   6,400.00

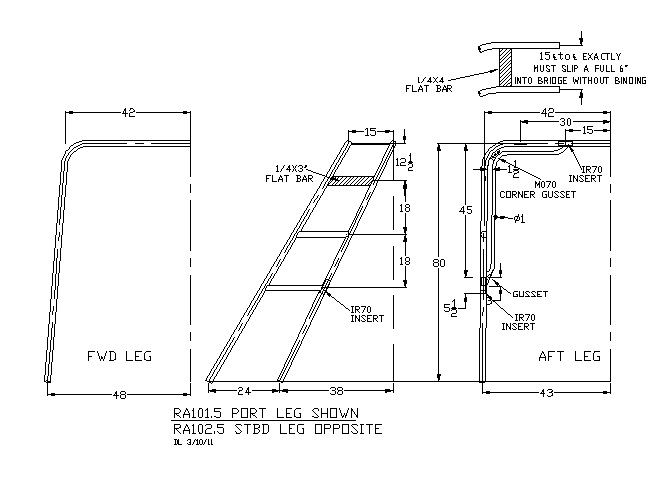

See diagram 1, 2.

Super Sail Arch Xtra High Capacity, 2"ID super sized material

Super Sail Arch Super Sail Arch Super Sail Arch

Adjusts to fit 120” to 170”

TIB111/12/346

$5400

Adjusts to fit 120"” to 170” forward; 110” to 160” aft

TIB111.5/112.5/349

$5600


Please Call for information on specific yacht applications; certain customizable dimensions are possible at additional cost


Prices and specifications are subject to change, please call for current information

made in the USA View all Radar Arch Options

[UPDATED] Click to see a comprehensive list of boats
our "Tower In A Box" Sail Arches have been installed on.

Universal Arch Makes Installations on Hundreds of Other Makes and Models Possible


click here for sail arch accessories

Aluminum PipeFor Sailors, the "Tower in a Box" Arch from Atlantic Towers is designed to mount to the deck, transom, hull sides or a combination. The approximate 30 degree angle, clears most existing biminis, back stays, and pushpits. Mounting hardware (feet) is shipped loose and epoxied and screwed into the legs at the time of installation. The legs may be trimmed for the best overall height, and at unequal lengths to facilitate installation. There is a choice of mounting hardware, with 3.5" or 2" diameter bases. Our proprietary pin and pad mounting system accommodates any angled mounting surface.
Telescoping design allows adjustment to fit many different transoms and applications.

High Strength welded frame of schedule 40 marine grade aluminum pipe nearly 2" in diameter, with secondary reinforcement of nearly 1 3/8" in diameter finished in durable salt resistant bright clear anodizing

The Arch has the appearance and strength of a custom welded unit when installed on your boat. It weighs less than 100 pounds, and is strong enough to support the weight of two persons for the installation of equipment.


Every Arch includes a large (approximately 12" x 12") radar plate, plus four 4" wide mounting plates which will accommodate up to six additional antennas. Radar cables, antenna cables and other wiring may be concealed inside the frame The Arch is mounted to your boat in four locations with our proprietary "Pin & Pad" mounting hardware. These fittings have nylon bushings which help isolate any vibration in the Arch from the fiberglass surface of your boat. The "Pin & Pad" fittings also allow mounting to any angled surface, and easy dismounting of the arch (just remove the four 3/8" bolts) for storage or transport. You have a choice of 3-1/2" 5 bolt bases click here for details, or 2" diameter 2 bolt bases click here (new page, Kit #6 detail) Cupped feet, to allow direct pass thru of electrical cables are available at additional cost.

pinpad

Everything is included for a complete installation on most boats, even backing plates along with instructions and a video detailing all the steps of the installation.

included


New for Spring 2015, "Tower In A Box" arch bridges include a snap-in Sintra cover panel in radar plate to conceal wiring. A feature borrowed from our Custom Structures.


:

click here for sail arch accessories


Available Options:

Atlantic Towers manufactures a wide variety of fittings and specialty hardware that allow Sail Arch owners to design and build a variety of individualized applications. Including Solar Panel array supports. Davit arms, lifting eyes, outboard motor brackets, etc.

Tender Handler: $1799

A growing number of cruising yachts are using Tower in a Box® stern mounted arches to mount solar panel arrays and lift their tender. Frequently arches cannot be mounted sufficiently far aft to provide a straight “pick” when lifting the tender and the tendered needs to dragged up and over the sugar scoop or extended platform to raise it into a secure position under the arch. The “Tender Handler” option provides “reach” to lift the tender from the water behind a sugar scoop transom or extended swim platform and then bring it high and close to the yacht under the arch, where it can be secured for navigation. The unique design feature is the articulated pivot at the connection of the “Tender Handler” frame to the arch, eliminating the need for perfect alignment and ensuring smooth operation.

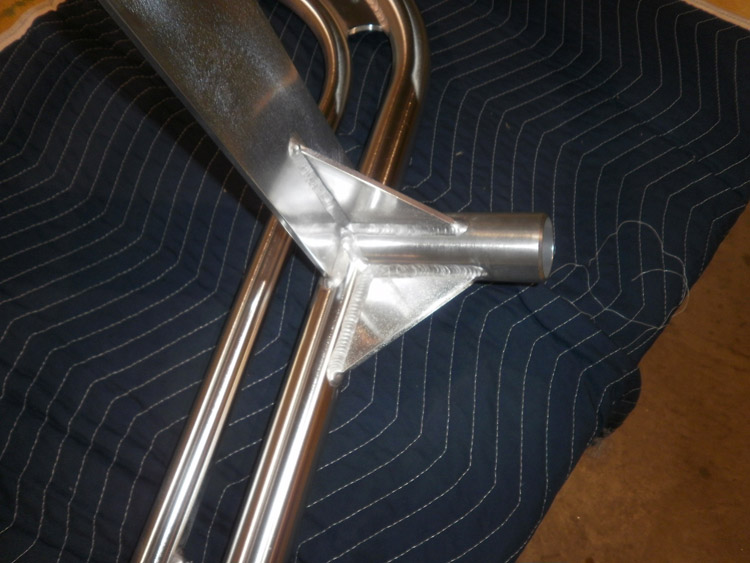

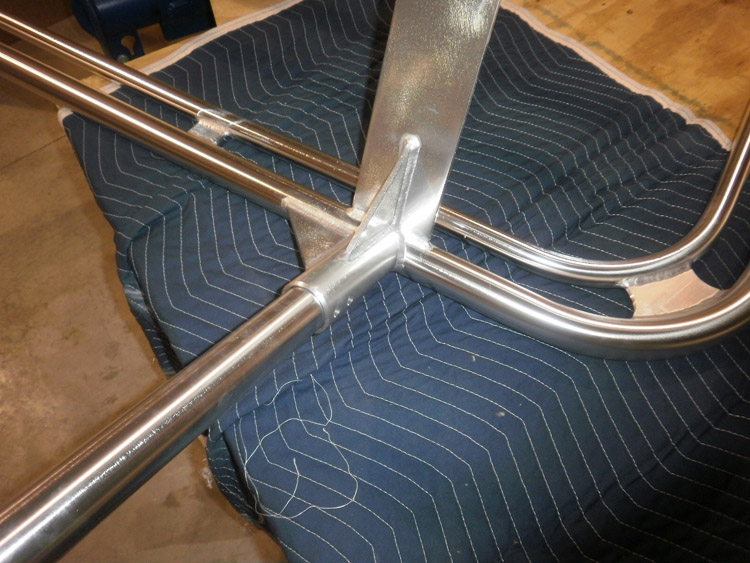

Clamp on Wind Generator Base & Mast
KIT77000 - Top Mount: $499
KIT77700 - Side Mount: $399

Wind Generator Base and Mast can be clamped anywhere on the top of your arch. Comes with a 40' length of 1 1/2" Schd.40 which can be permanently fitted into the receiver with two part epoxy, or made removable with the use of machine screws or quick release pins. The 1.90" outer diameter of the 1 1/2" schd.40 pipe fits many popular wind generators.

KIT78000 Clamp Assembly/Lifting Eye.
Sold as pairs $199

An extruded anodized aluminum clamp assembly that can be used to secure a lifting tackle to the arch.



KIT79000 Extension davits. Sold as pairs $599

Can be mounted to top of arch to extend the "pick point" of the lifting eyes up to 24" behind arch. Includes two 42" Schd.80 extensions, end caps, curved washers, clamp assembly lifting eyes, and all hardware needed for installation. Some drilling required.

KIT76000 Solar Panel Mounting Kit $319

Allows you to mount solar panels anywhere on your arch. Kit contains (2) 65" lengths of 1" x 2" x 1/8" rectangular aluminum tube, (4) plastic end caps, (8) Curved Washers, and all hardware needed for installation. Some Drilling Required

Custom Solar Panel Mounts.
We offer a full line of parts and accessories that can be combined to create your own custom mounting solution. For pricing and more information please call 1-800-831-8889

adjusto 2

AJ30500
Adjust-O-Launcher
Need more rod holders? Individual Adjust-O-Launcher aluminum rod holders can be mounted anywhere on the perimeter of the Sail Arch framework. A unique patented design available exclusively from Atlantic Towers, manufactured from all aluminum in natural aluminum or gold anodized finish Adjust-O-Launchers can be pivoted thru 12 positions for unmatched flexibility. Fits all marine standard 1-1/2” pipe (1.90” o.d.)
AJ30500C Clear Anodizing: $129.00
AJ30500G Gold Anodizing: $159.00

adjusto assembly

Clamp on Cleat $119

An extruded anodized aluminum clamp allows you to add a cleat anywhere on your Atlantic Towers Sail Arch.

Kayak or Paddleboard Rack

Made from 1 1/2" schd. 40 anodized aluminum pipe with an outer diameter measuring 1.9" and features eye bolts for tying down equipment along with grip rail to prevent any slipping or damage. With three different clamp on or bolt on versions available, the rack can be clamped or bolted to existing arches, hardtops, davit systems, bow rails, and foredecks.
Bolt on Rack: $449
Clamp on Rack: $389



**NOTE: There is a 10% re-stocking charge for cancelled or returned merchandise**

Due to our dedication to continued product improvement, we reserve the right to make changes without notice.
